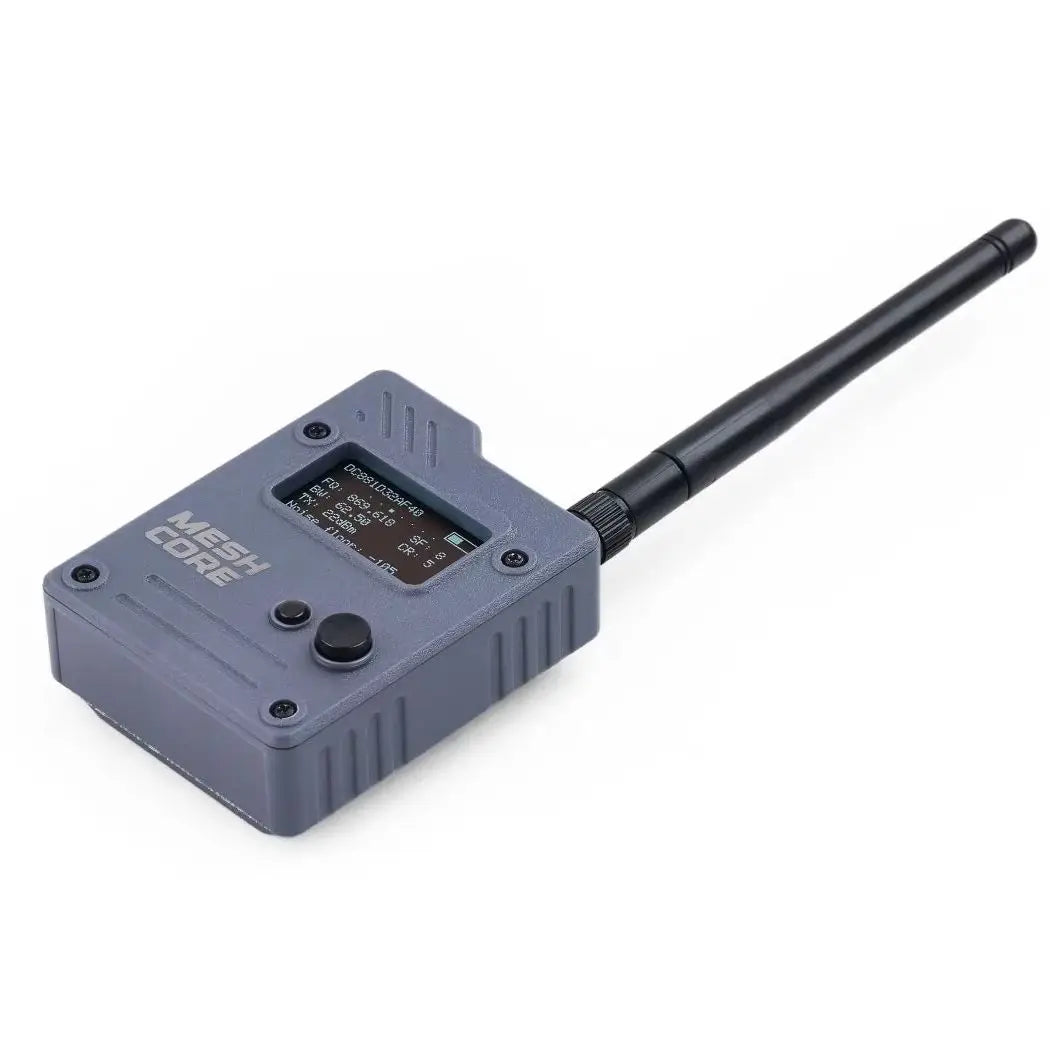

Seeed Studio Wio Tracker L1 Pro LoRa Gps Rechargeable Tracker

$83.99 USD

~~$0.00 USD~~ $83.99 USD

Sale Sold out

Shipping calculated at checkout.

Ships From United States

You maintain reliable off-grid messaging and precise location tracking without depending on cellular infrastructure.

You establish secure text networking through LoRa radios operating between 862 and 930 MHz, paired with Bluetooth 5.0 for direct smartphone control.

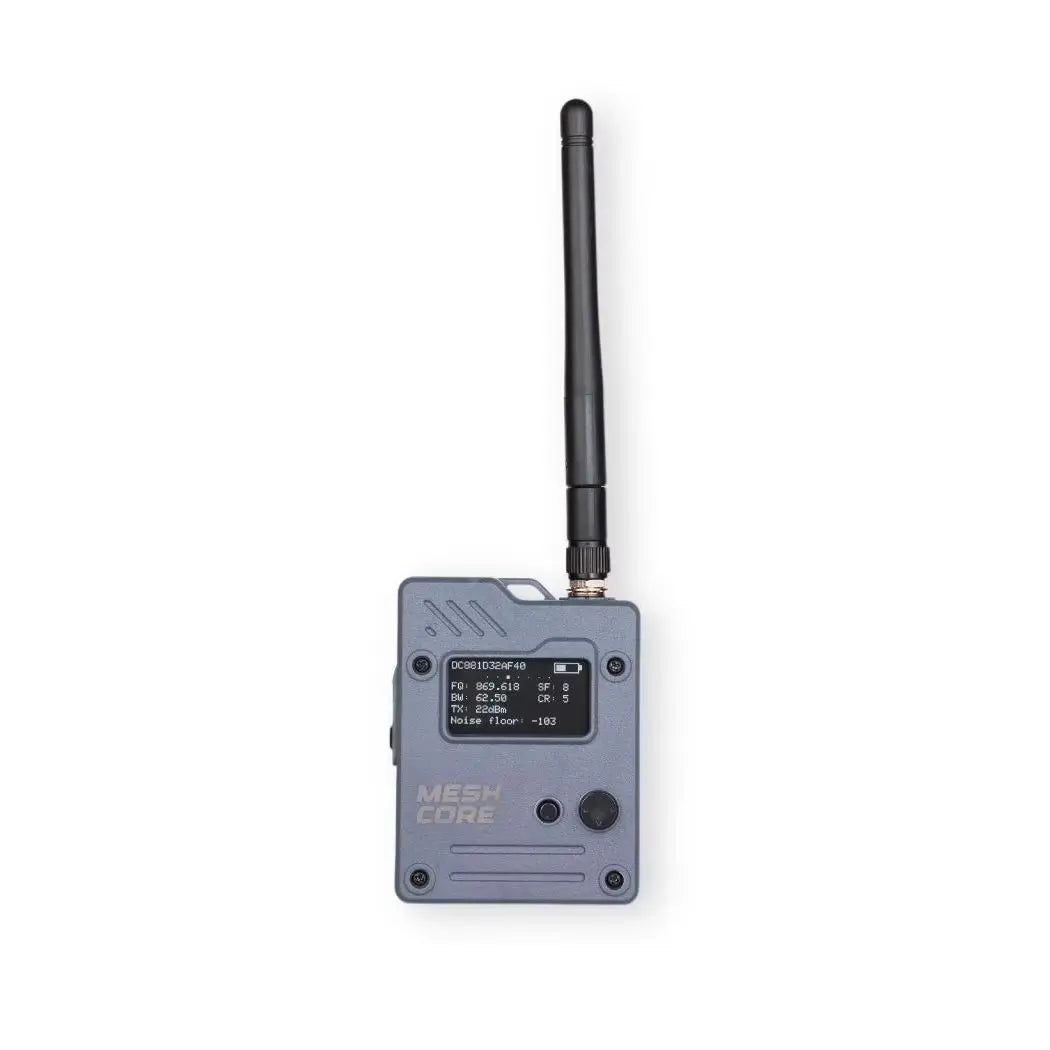

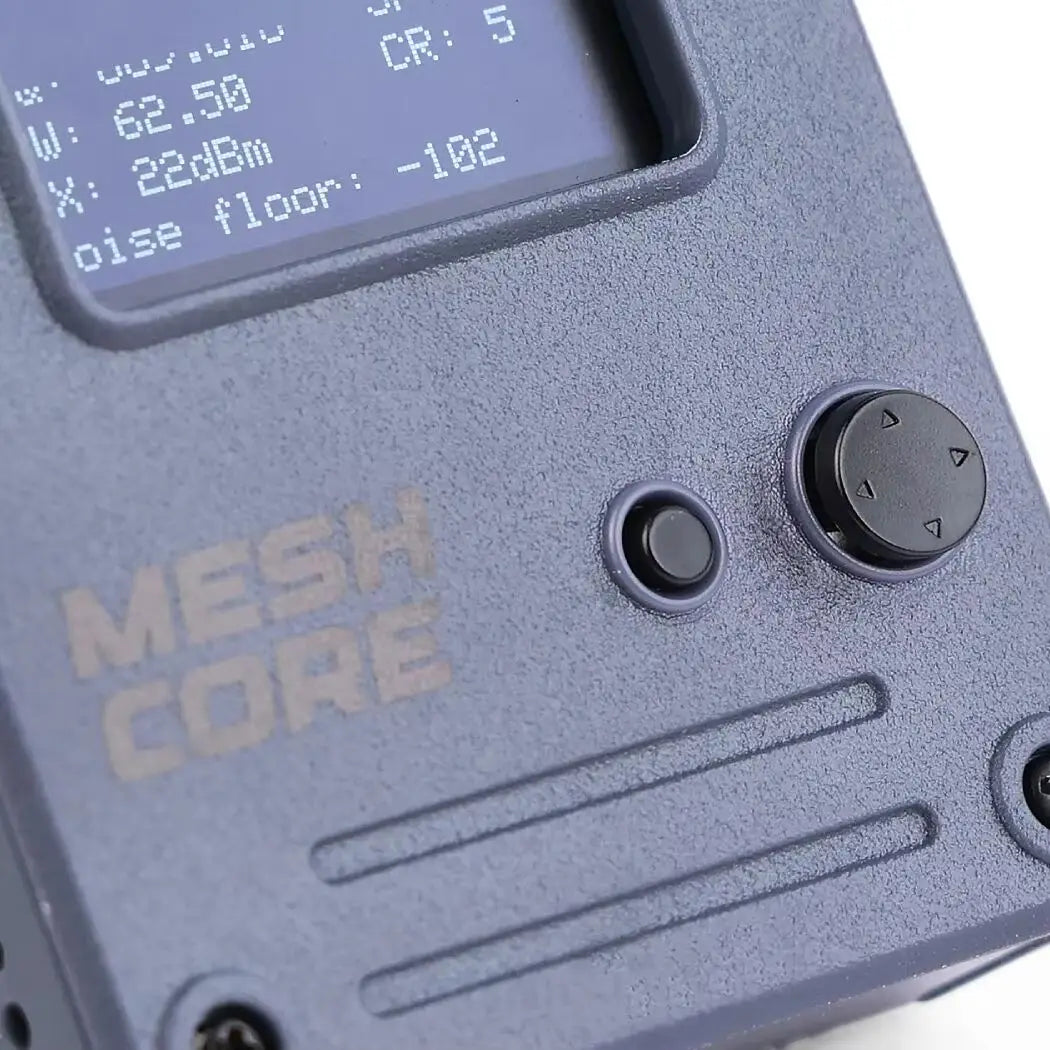

You track coordinates continuously using L76K multi-constellation GPS, viewing live navigation data on a compact 1.3-inch 128×64 OLED display.
You power extended field deployments with a 2000 mAh internal cell, Type-C rapid charging, and dedicated 5-volt solar input terminals.
You bypass configuration delays thanks to a reinforced enclosure and pre-installed MeshCore firmware that enables instant device activation and node pairing.

Processor	Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262 Wireless Module, supports 862-930MHz
Wireless	Bluetooth 5.0
GPS	L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display	Size: 1.3 inch
	Resolution: 128*64 pixels
	Active Area(mm): L34.5W23.0H1.47
Power	Type-C: 5v---1A
	Solar energy interface(2.0mm 2p):5V---1A
	Baterry interface(1.0mm 2p JST): 3.7v---1A
Certification	FCC, CE, RoHS，EUDOC,TELEC,UKDOC

Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery	x1
LoRa Antenna	x1
