Description

Our elaborate 1.5Hp single voltage pool pump is designed for home and small commercial pools. It is equipped with a motor with a powerful 1.5HP to ensure the efficient operation of the pool water circulation mechanism. Whether it is in daily maintenance or deep cleaning, it can handle it easily and create a clear swimming environment for you.



Key Features

Made to Last: This product consists of a high-quality copper wire motor and PP pump body, which is sturdy and durable, not easy to corrode and rust, ensuring a long service life



High Efficiency: The 1100-watt pure copper motor delivers a powerful 1.5Hp power, giving it a maximum flow rate of up to 422.68qt/min, which greatly increases the rate of water circulation, helping you clean your entire pool quickly.



Large Delivery Lift: With a maximum head of 52.49 ft, the pump is designed for home and small commercial pools, saving time and cost on manual transportation.



Single-voltage Compatibility: This product is designed for single-voltage environments, avoiding complex circuit modifications and fitting into most home power grids.



Timing Function: The built-in 24-hour programmable timer starts the pump when you need it. When you select the run time, the pump will run for a set number of hours at the current time of day.



High Safety: The product has built-in overheating protection with IPX5 protection class, which reduces safety risks and extends its service life.



Simple Operation: This product is easy to operate, you just need to plug it in, set the program and it will run automatically!



Easy Assembly: Simple structure, complete accessories, and detailed assembly illustrations help you finish the installation quickly and use it in a short time.



Effortless Cleaning: It has a smooth surface and an open structure, so you only need to wipe the dust or residue with a towel.



Details

Long Power Cable: The 4.92 ft power cable reduces usage restrictions and further protects your safety.

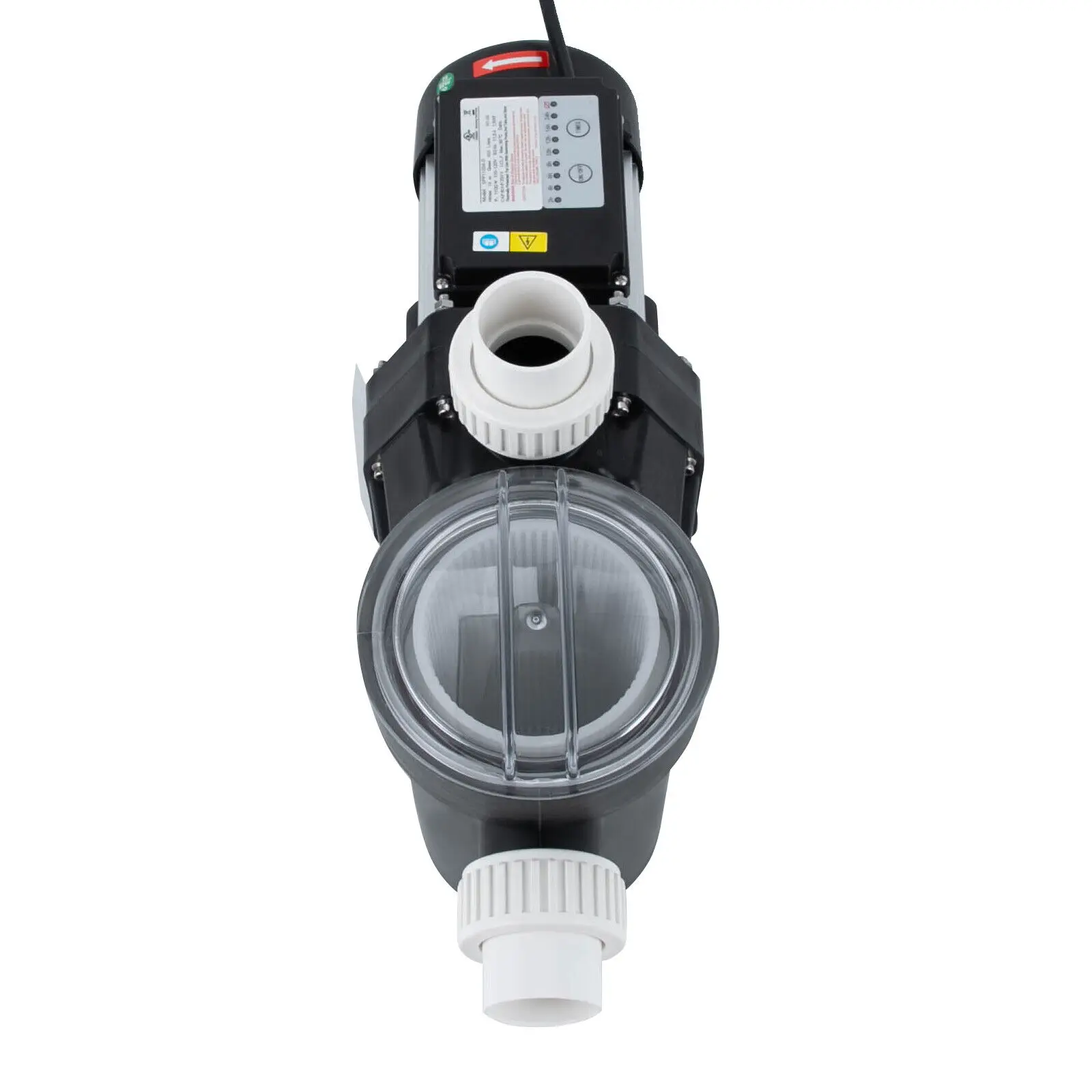

Clear Lid: It is convenient for you to check the filtration at any time so you can determine when the pool needs to be cleaned.



Stable Base: It increases the force area with the ground to ensure the stability of the product.



Application

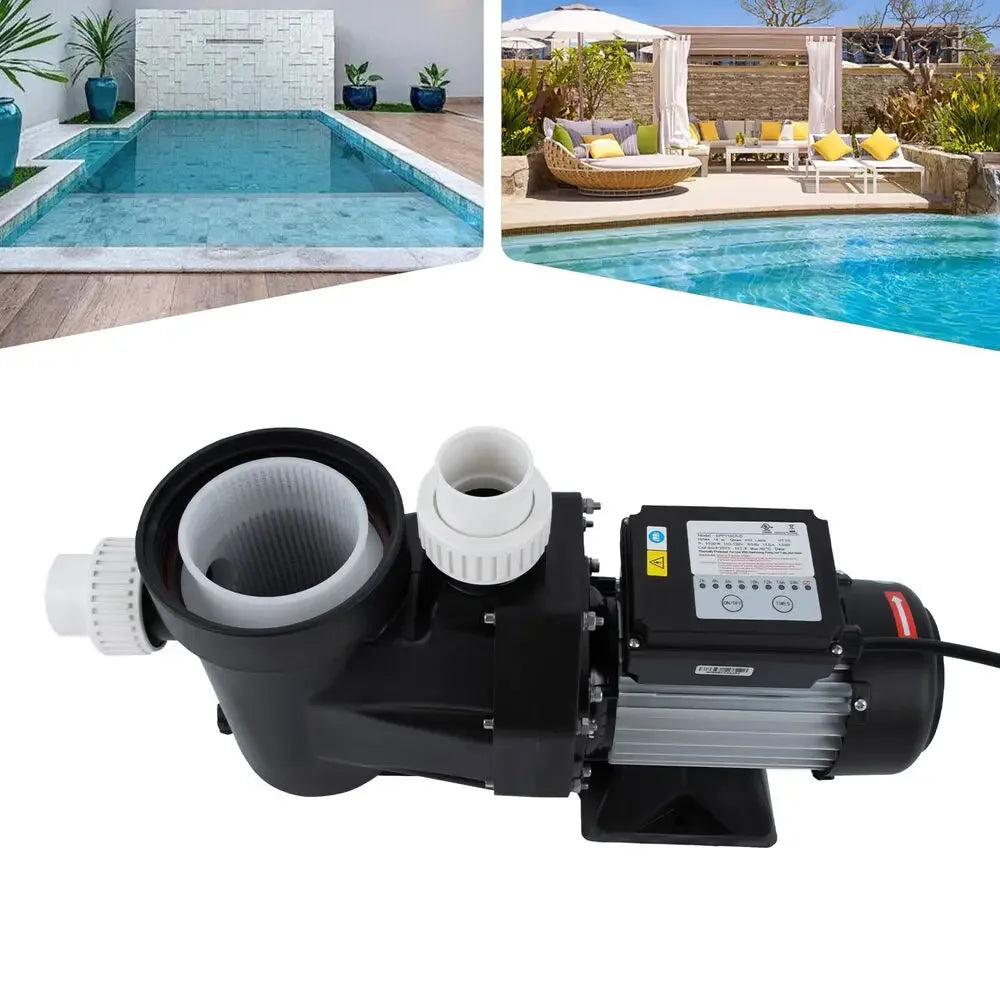

This product is suitable for home pools, swimming pools, hot tubs, and spas, etc.





Specification

Material: Copper Wire, PP

Model: SPP1100A-D

Color: Black

Assembly Required: Yes

Mounting Type: Floor Mount

Protection Class: IPX5

Noise: About 70dB

Plug Type: US Standard

Timing Range: 2-24h

Hmax: 16m/52.49ft

Qmax: 400L/422.68qt/min

Power: 1100W

Voltage: 110-120V  60Hz

Current: 11.5A

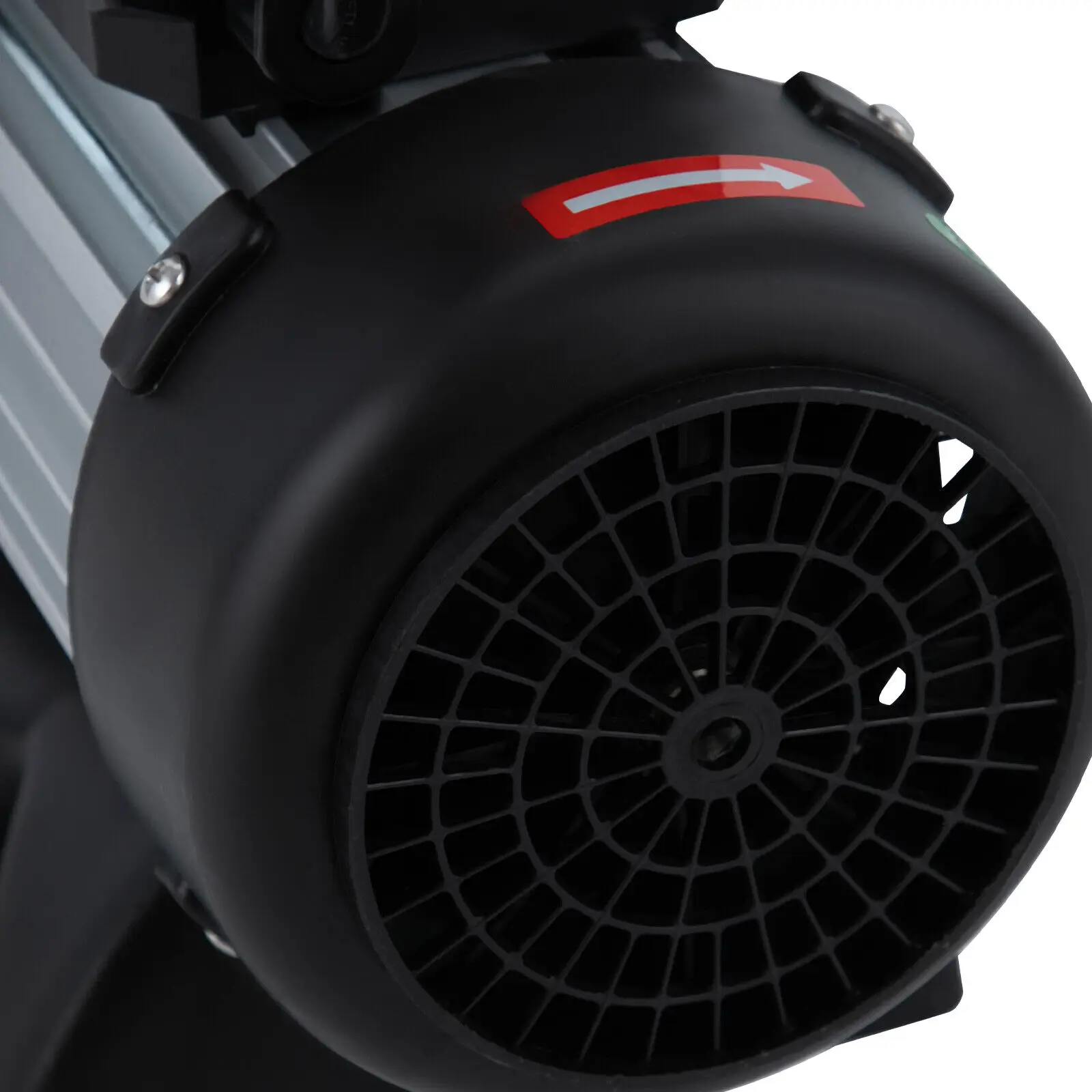

Motor: 1.5HP Pure Copper Wire Motor

Max: 50℃/122℉

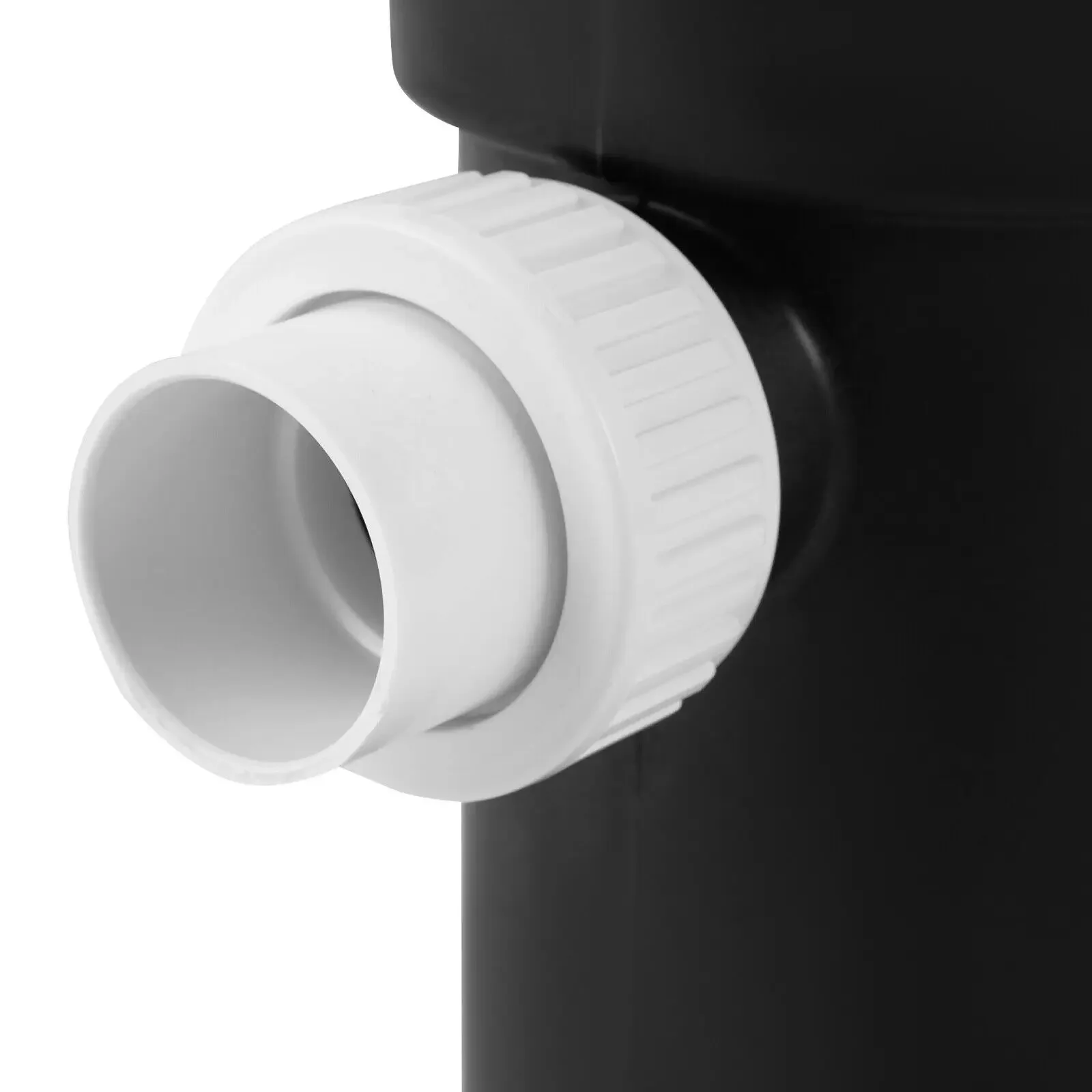

Inlet & Outlet: G2 1/4

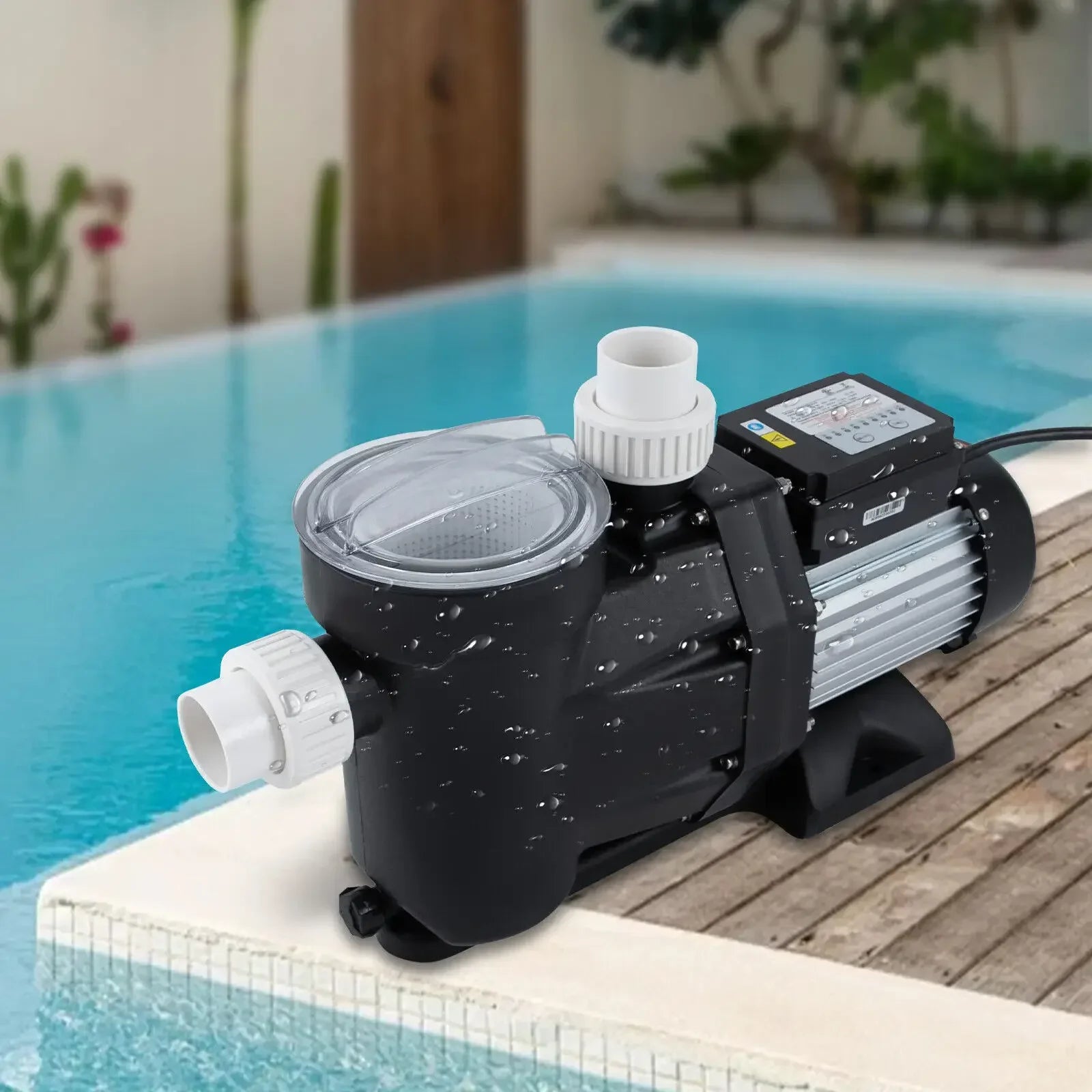

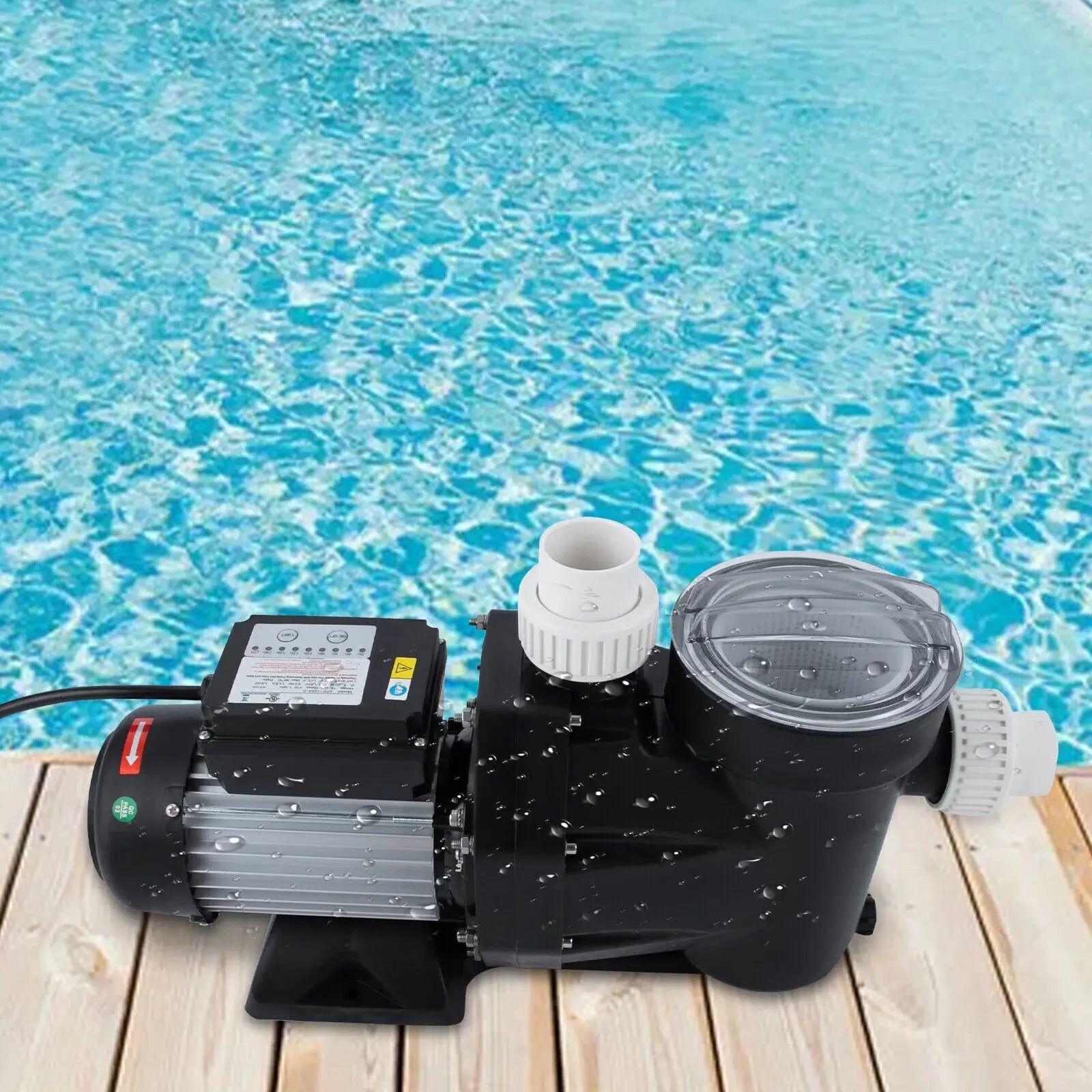

Use: Indoor & Outdoor

Power Cable Length: 1.5m/4.92ft

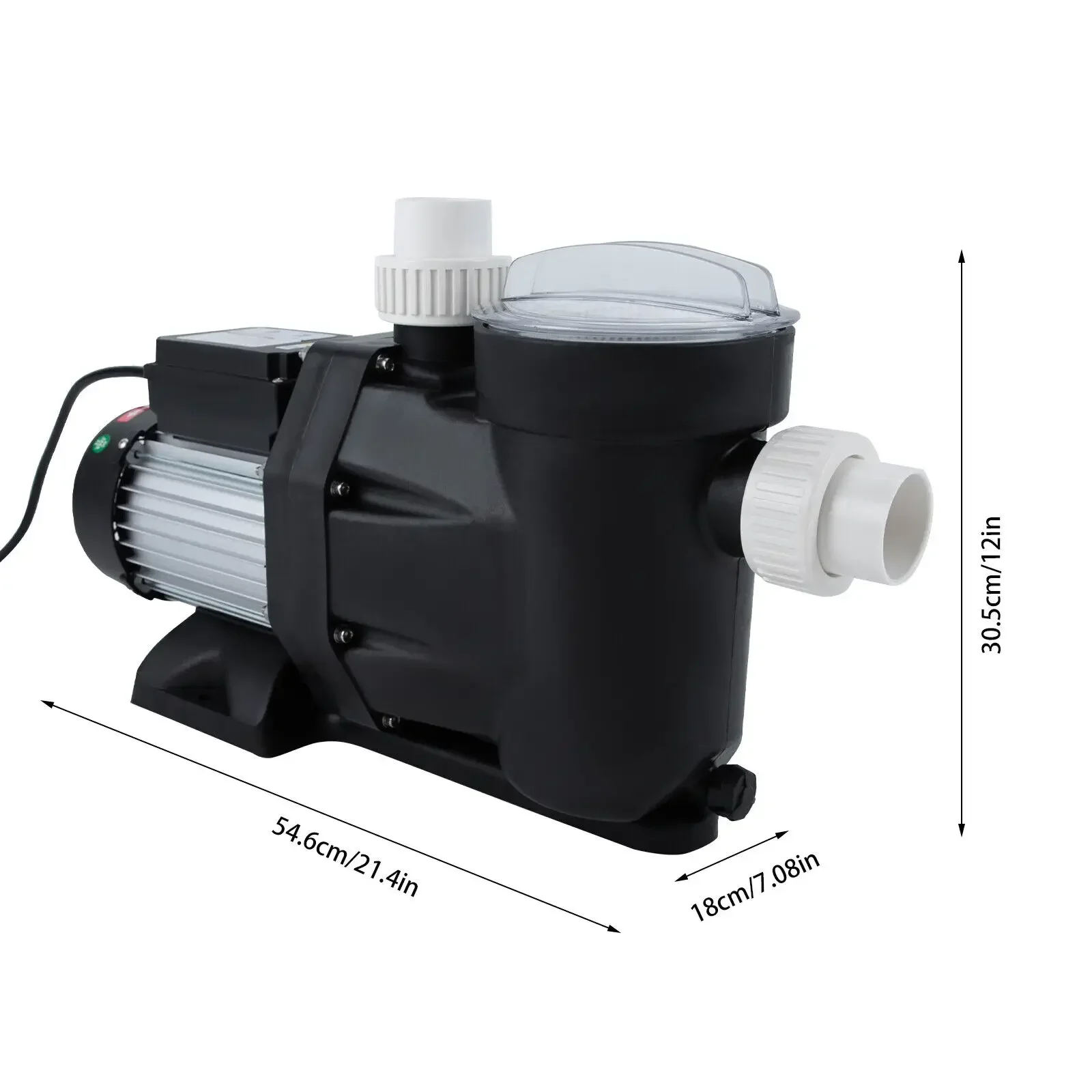

Product Length: 546mm/21.5in

Package Size: 60*35.5*20.5cm/23.62*13.98*8.07in

Gross Weight: 12.1kg/26.68lbs

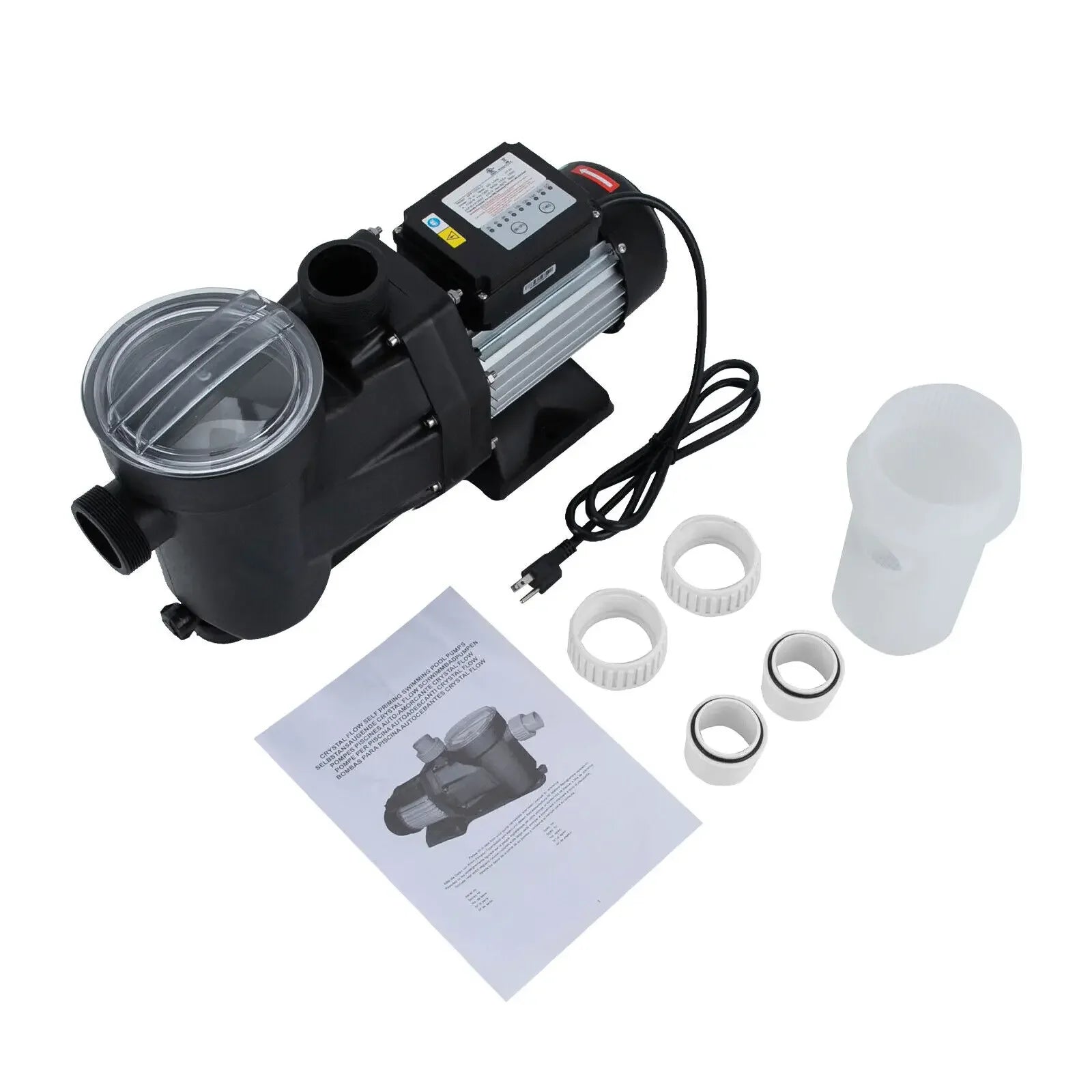

Package Included

1* Pool Pump

1* English Manual

Other Accessories for Assembly



Notes

• Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
• Please note that before the water pipe is installed, the adapter must be installed to the water pump outlet and inlet. Put the nut on the inner connection, then connect the pipe with glue until the glue sticks to the pipe before screwing it to the water pump.
• Please note that this product can only be connected to a grounding-type receptacle protected by a ground-fault circuit interrupter(GFCl).
• To reduce the risk of electric shock, install at least 10 feet from the inside wall of the pool and never use an extension cord. This product is intended for use with permanently installed pools only and is not intended for use with storable pools.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
