E1002 6-Colors ePaper Display E-ink Screen 7.3 inch, by ESP32 S3, 3-month battery life Home Assistant TRMNL Eink dashboard

E1002 6-Colors ePaper Display E-ink Screen 7.3 inch, by ESP32 S3, 3-month battery life Home Assistant TRMNL Eink dashboard

$219.99 USD
$0.00 USD $219.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Accessory Type: LCD Screen

Battery Included: Yes

Brand Name: seeed studio

Compatible With: TRMNL

High-concerned chemical: None

Origin: Mainland China

Typical Application Fields: Consumer Electronics


reTerminal E1002 is a 7.3 inch open-source full color ePaper display with up to 3-month battery life. Powered by ESP32-S3, it natively supports our SenseCraft HMI no-code UI platform for effortless dashboard creation, while supporting Home Assistant, TRMNL E-ink dashboard, Arduino and ESP-IDF for further development. With the E Ink® Spectra™ 6 full-color ePaper Display, it's perfect for digital frame, colorful dashboard visulization.

Feature

Note:

The reTerminal E Series Display supports SenseCraft HMI by default firmware. If you need to re-flash the TRMNL Dashboard firmware, you need to purchase a separate TRMNL software license (https://shop.usetrmnl.com/products/byod).

The SenseCraft HMI platform is now in the beta trial stage, and the functions will be continuously improved. At present, there is a limit to the number of AI generation and UI generation.

Best-sellers are on the way! DE warehouse restocking October 27. Stock is limited—place your order now to be among the first to receive it!

Japan MIC Radio Certificate approved
https://wiki.seeedstudio.com/reterminal_e10xx_main_page/

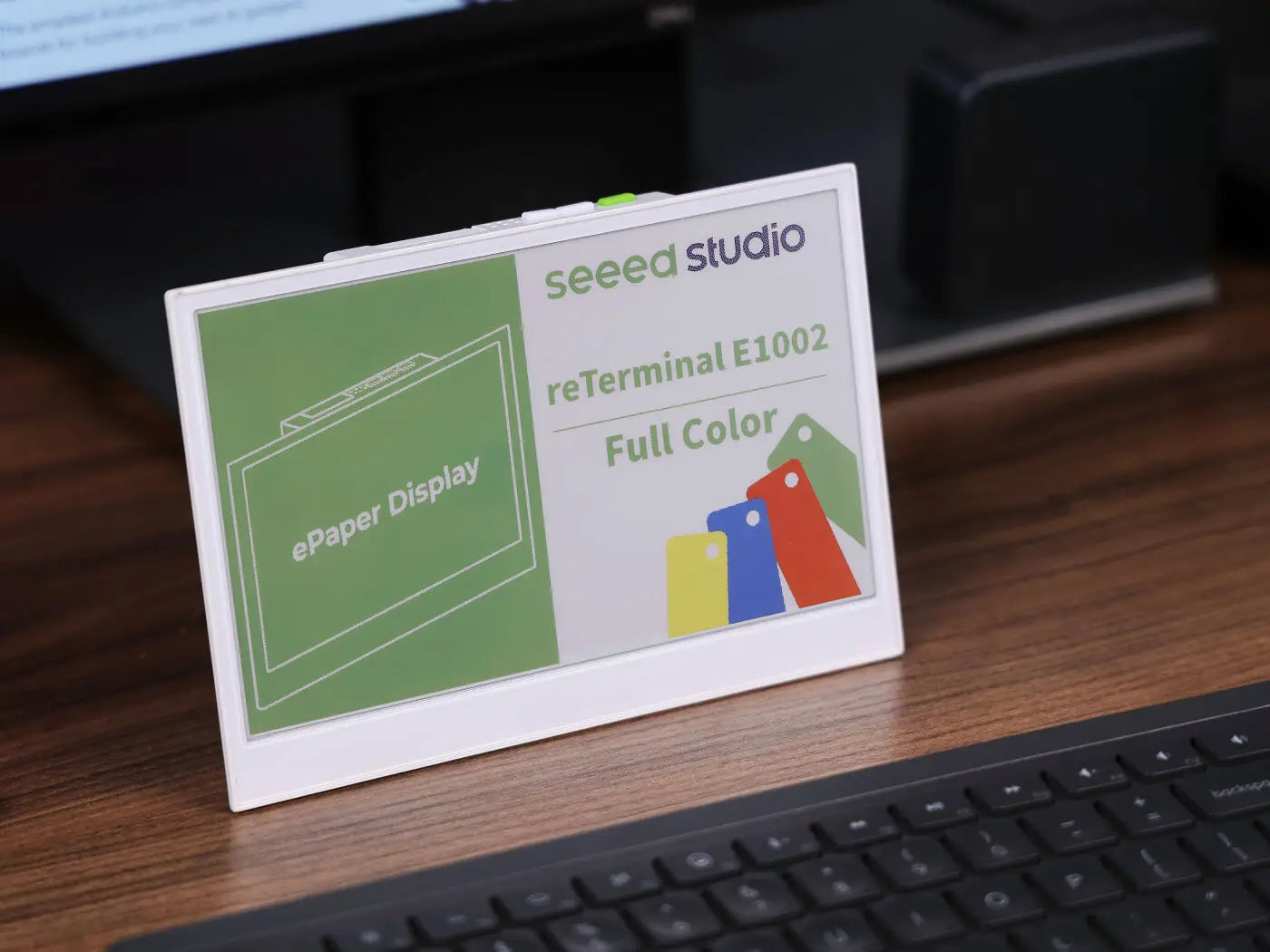

Beautiful, Ready-to-Use E Ink® Spectra™6 Color ePaper Display

The reTerminal E1002 comes fully assembled as an HMI (Human Machine Interface) in a sleek, durable enclosure, featuring an integrated 800×480 E Ink® Spectra™6 full-color ePaper display. Powered by Espressif’s ESP32-S3, it delivers vivid visuals and crisp text straight out of the box—no extra setup required.

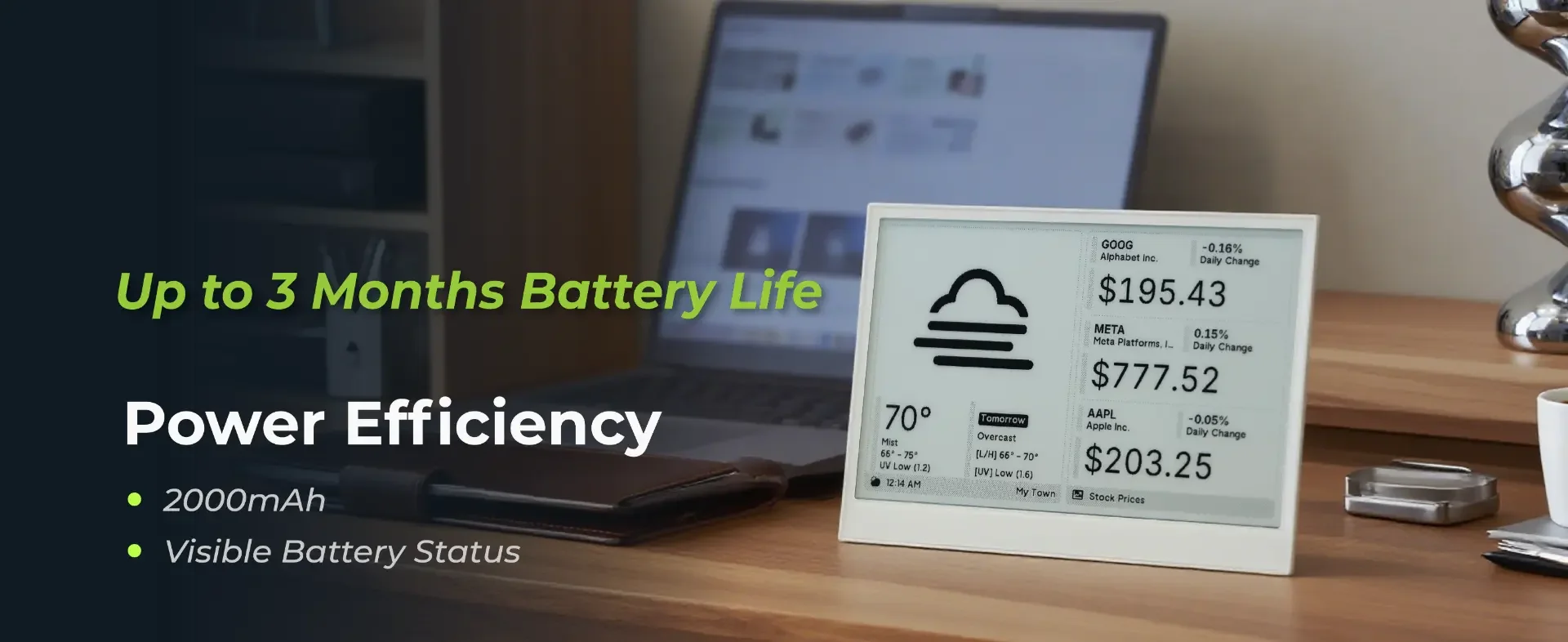

Ultra-Low Power with 3-Month Battery Life

Equipped with a built-in 2000mAh battery and engineered for maximum power efficiency, the reTerminal E1002 runs for up to 3 months on a single charge in deep sleep mode (6-hour refresh interval). Place it anywhere—on your desk, mounted on a wall, or in any space—without worrying about frequent recharging.

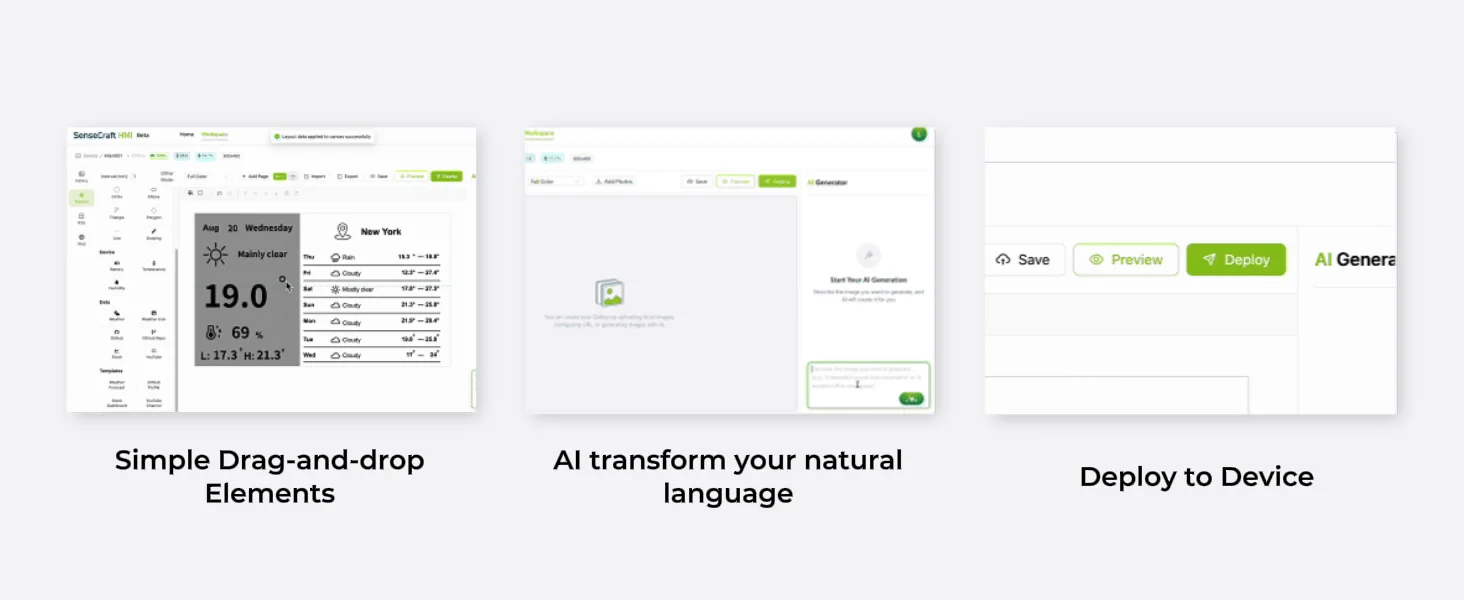

No-Code UI Design & Deployment with SenseCraft HMI

Design and deploy personalized dashboards effortlessly with SenseCraft HMI, our new AI-powered no-code platform. Create your UI through simple drag-and-drop elements, choose from our rich templates, or let AI help you. Connect real-time data from onboard sensors or web APIs, then deploy your finished dashboard to reTerminal E1001/E1002 display with just a few clicks. From design to data configuration to deployment, everything happens seamlessly on one single platform.



Works with Popular Software Platforms

Enjoy seamless compatibility with multiple software ecosystems. Create no-code TRMNL Dashboards with 300+ plugins for everyday and work data, connect instantly to Home Assistant via ESPHome firmware, or developing your customized applications using Arduino, PlatformIO or ESP32-IDF environment.



Flexible Hardware & Software Customization

Leveraging Seeed Studio’s extensive OEM/ODM expertise, the reTerminal E10E1001/E1002 can be customized to fit your exact needs. Whether you require specific sensors, modified I/O configurations, or tailored UI designs, it’s built to adapt—ideal for industrial, educational, or personal use.

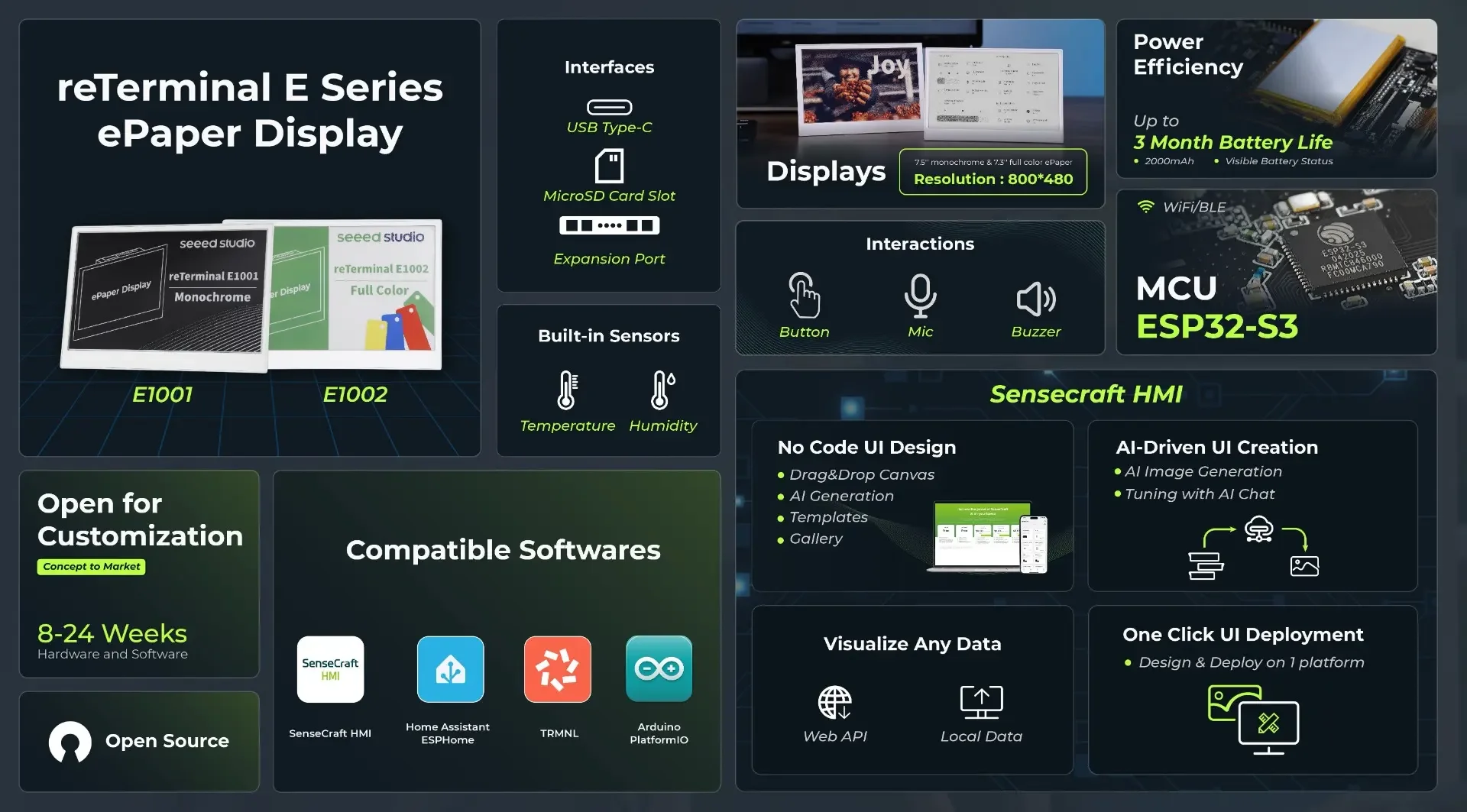

Specification

Product Name

reTerminal E1002

Processor

ESP32-S3 with 8MB PSRAM

Storage

32MB Flash, support Micro SD card

Display

7.3" Full Color

Resolution

800x480 Pixels

Micro SD Card

Maximum support 32GB SD card, FAT32 format

Wireless Connectivity

2.4GHz 802.11 b/g/n Wi-Fi, Bluetooth 5.0

Sensor

Temperature, humidity sensors

Microphone

Reserved for voice interaction application

Buzzer

Buzzer for sound alert

Battery

2000mAh

Power Input

USB-C 5V/1A

Software

Default firmware support SenseCraft HMI(SenseCraft HMI)

Support ESPHome firmware for Home Assistant

Support Arduino/PlatformIO/ESP-IDF development platform

Working Temperature

0-40°C

Dimensions

176mm*120mm*53mm(With Stand)/17mm(Without Stand)

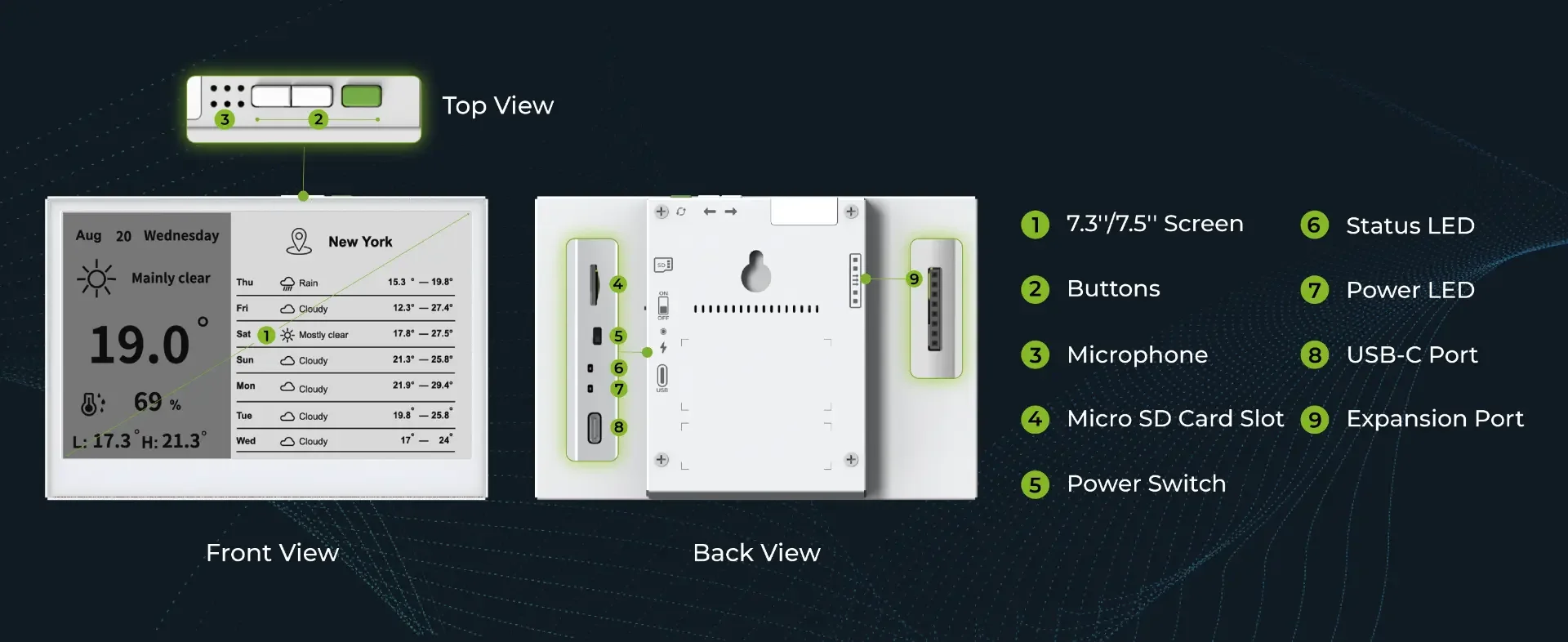

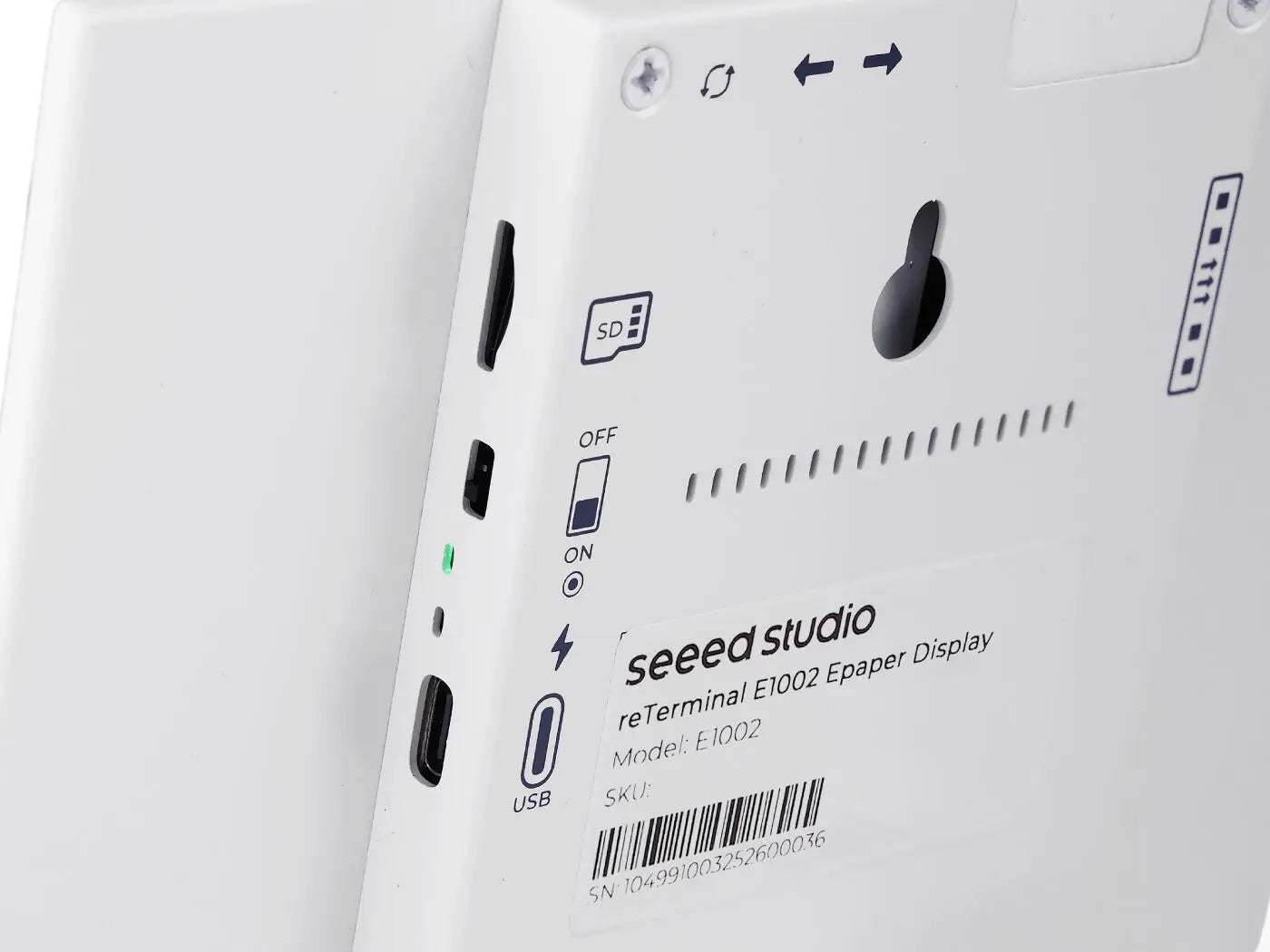

Hardware Overview


Application

  • Desktop Personal Assistants：Show colorful pictures or photos, track calendars, notifications, weather, or news as a stylish, energy-efficient alternative to tablets.

  • Home Automation Dashboards：Display real-time smart home data like temperature, humidity, and air quality via Home Assistant.

  • Smart Office Displays：Show meeting room availability, office schedules, or directional guidance in low-power, always-on ePaper displays.

  • Retail & Public Information Displays：Low-power ePaper signs for menus, schedules, or occupancy indicators with long battery life.

  • Education & Rapid Prototyping：An ideal platform for developers and students to learn IoT, embedded systems, and no-code UI design, while quickly prototyping and testing sensors, modules, or custom dashboards.

Documents
reTerminal E Series ePaper Display
reTerminal MIC Radio Certificate
reTerminal E1002 FCC Certificate
reTerminal E1002 CE Certificate
reTerminal E1002 ROHS Certificate

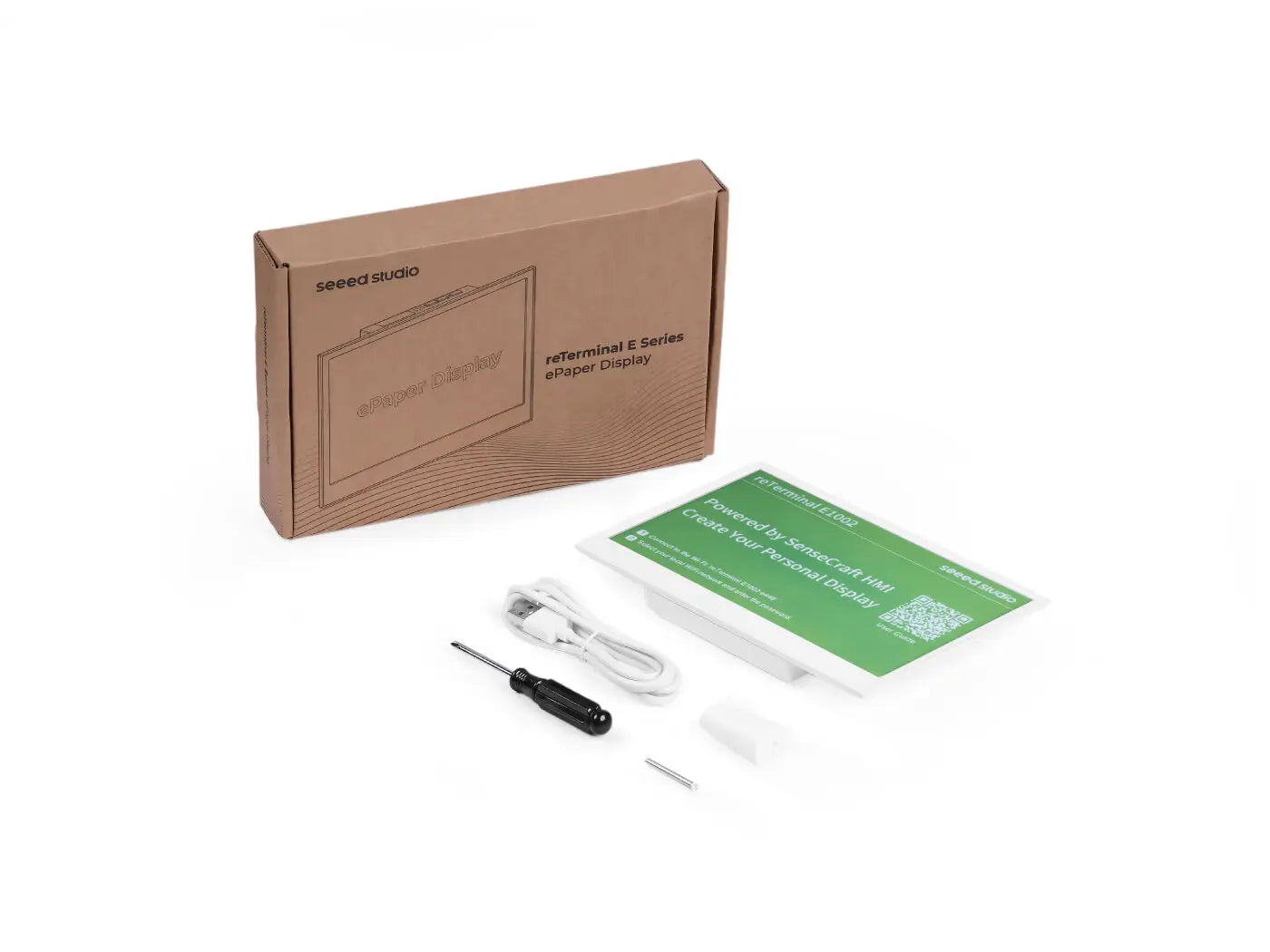

Part List

reTerminal E1002 ePaper Display

X1

USB Type-C cable

X1

Display stand with screw

X1

Screw driver

X1
